Bluetooth Smart Lock

Dhs. 196.03

RAYKUBE Electric Smart Door Lock With Bluetooth Phone APP Waterproof Anti Theft Lock 110dB Alarm Wire Rope For Door & Bicycle

 An amazingly easy to use lock with APP Control! Just lock and unlock your bike or motorcycle with your mobile phone (Android 4.3 and iPhone4s above systems) Keyless entry for enhanced security, no keys to lose or forget. Powerful anti-theft smart cable lock : Anti cutting ,Anti disassembling, Removing alarm ,Vibration alarm ,you could know all the condition on your phone Durable and safe : IP44 rating waterproof function , up to 110dB alarm sound . Product Specification Size: 92X55X34mm(3.62X2.17X1.34) * Material: ABSplastic+copper+cable(chain) * Power: 3 “AAA” size alkaline batteries * Cable(Chain)specification: length 80cm * Working temperature: -10℃~+60℃ * Storage temperature: -20℃~+80℃ * Product weight: 230g Protect Function APP Control! Supports Android 4.3 and iPhone4s above systems. • Anti cutting function: Cutting cable activates alarm immediately. • Anti disassembling function: Removing the battery cover activates alarm immediately. • Vibration function: Vibrating or emoving the unit activates alarm for 30 seconds. • Waterproof function: IP44 rating approved. • Alarm sound: Up to 110dB Packing size SIZE:202*273*55MM weight:329g Note : The package doesn't include the battery.


Electric Smart Lock

Bluetooth Phone APP Controlling

For Door & Bicycle

Smart Lock



FEATURES:

  • Bluetooth Connecting with phone APP IOS/Android
  • Phone APP control Locked/Unlocked
  • Vibrating or emoving the lock activates alarm
  • Cutting cable or removing the battery cover activates alarm
  • The steel cable can be used as self-defense whip
  • Alarm sound up to 110dB
  • Easy operation, no need keys
  • 3 x AAA size alkaline batteries operation(not included) and low battery indicator
  • IP44 rating approved



TECHNICAL PARAMETERS:

  • 3 x AAA size alkaline batteries operation
  • Battery life: more than 12 months
  • Cable specification: length 80cm / diameter:10mm
  • Working temperature: -10℃~+60℃
  • Storage temperature: -20℃~+80℃
  • Size: 92X55X34mm



Item Include:

  • 1 x R-K87 Lock (80cm Wire Rope)(The default colour is Black)
  • 1 x English User Manual
  • (Not include battery)

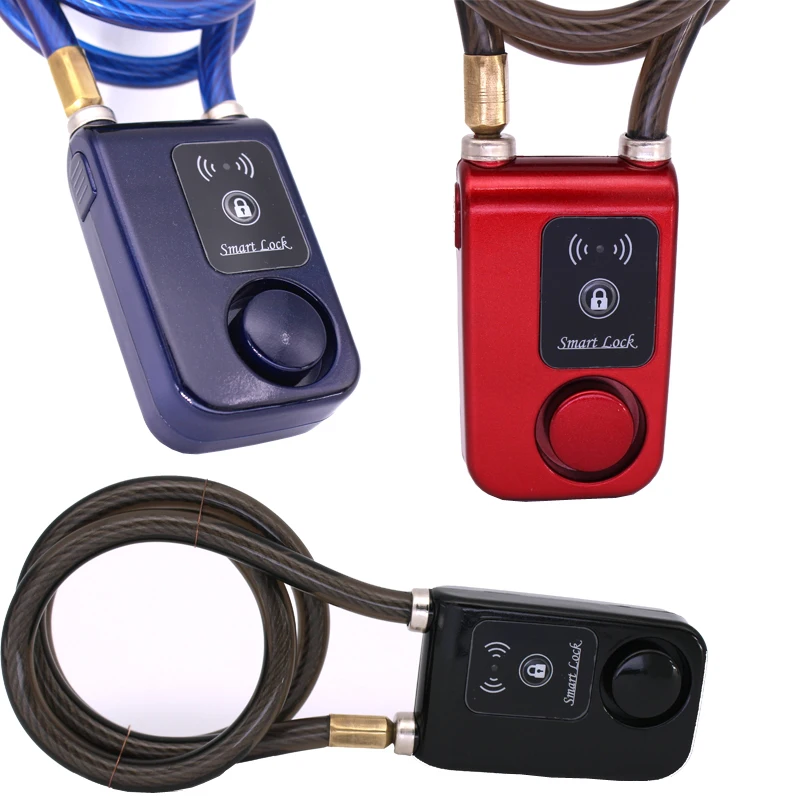

If you need other colour,please leave a message to note it.

20

22

13

14



24

A

Alarm:

Anti cutting function:

  • Cutting cable activates alarm immediately.
  • Anti disassembling function: Removing the battery cover activates alarm immediately.
  • Vibration function: Vibrating or removing the unit activates alarm for 30 seconds.
  • Waterproof function: IP44 approved.
  • Alarm sound: Up to 110dB

K

Note: The Alarm function work only when the bluetooth disconnect with the phone

26



APP:

Apply to iPhone 4S and higher, Android version 4.3, bluetooth 4.0 version.

C

25



Battery:

  • 3 x “AAA” size alkaline batteries.
  • When the power is lower than 20%, Alternating red and blue lights flashing, APP will warn you low battery; When the power is lower than 5%, the lock is unable to work, please replace the battery immediately.

B

Lock:

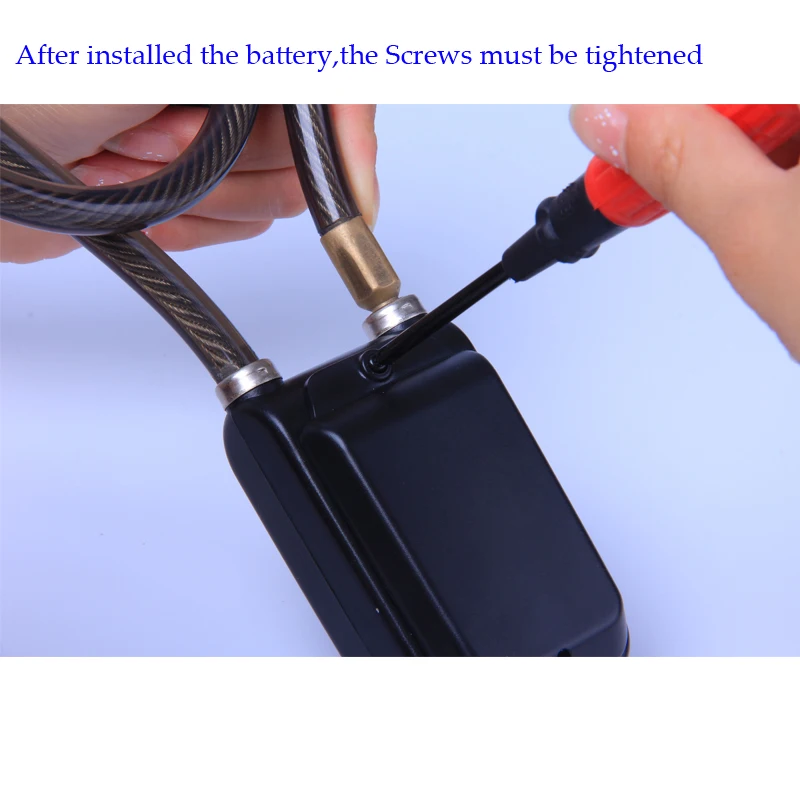

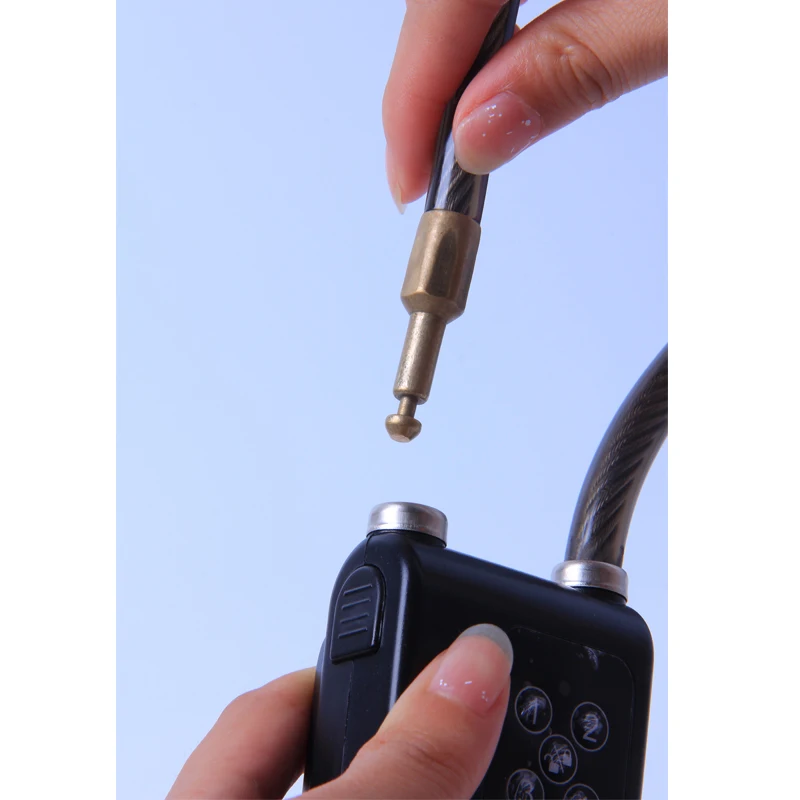

Install the battery, screw the battery cover, insert the lock ,press the lock button. The unit will sound three‘Bi Bi Bi’, then it will lock automatically. (the unit can’t lock, if the step is wrong)

D

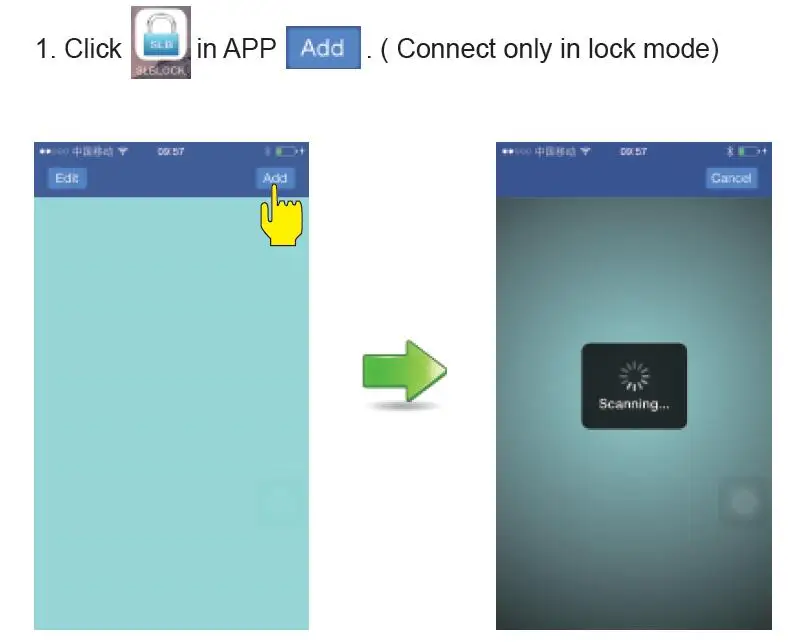

Connect:

E



   2. Enter the original password. (Factory password is: 123456),APP will show the screen of connected.

F

Manually Unlock:

G



Automatically Unlock:

Click autounlock, no need to operate APP. When the mobile phone gets close, blue light flashes, and it will unlock automatically. When the mobile phone is moved away, it will lock automatically.

H

Note:When using the Automatically Unlock functions,if unlocked ull out the cable and want to lock again,please must press the locked button in the lock body that the Automatically unlock can keeping usefull.



Vibration Function:

Vibration function can be chosen on or off. (In vibration mode,when the unit detects trigger for vibration, the unit will first alarm 1 second for warning. If the unit detects trigger again after the next five seconds, the unit will alarm for 30 seconds)

I

And more setting please refer the User Manual....



Troubleshooting:

L



Smart Lock 2

27

28

29

5 (2)

6 (2)

8 (2)



Thanks!!!
