1. Measure Units: Meters / Feet
2. Display: LCD
3. Backlighting: LED
4. 4.6cm diameter Round transducer sensor
5. Depth Range : Max: 100m (328ft) ; Min: 0.9m (3ft)
6. Sensor Beam Angle: 45 degrees
7. Display the nature or circumstance of bottom of Sea (i.e. grass, rock and sand)
8. Operating Temperature is from -10°C to 45°C (14°F to 113°F)
9. Uses 4 x AAA batteries (not included)
How to use the Sonar Sensor:
1. Toss the sensor and float into the water;
2. Attach the Side-Scan Adapter to the boat hull using the mounting tabs;
3. Attach the sensor to a handle, lower the sensor into the water.
1. It will turn off automatically if the depth display reads "---" continuously for 5 minutes.
2. The transmitter is waterproof, but the receiver (unit with screen) is not waterproof, so please do not submerge or spray the fish finder screen with water.
3. It can not be used to detect bait fish(motionless) or fish that is smaller than 10cm.
4. When use this fish finder on moving boat, please make sure the moving speed is slowly (lower than 5 mph).
5. Extremely cold weather will impact the performance of the product. It is suggested that you keep the unit in temperatures above 0 degrees during operation.
6. Strong waves, suspended matter and muddy water,will affect the performance.

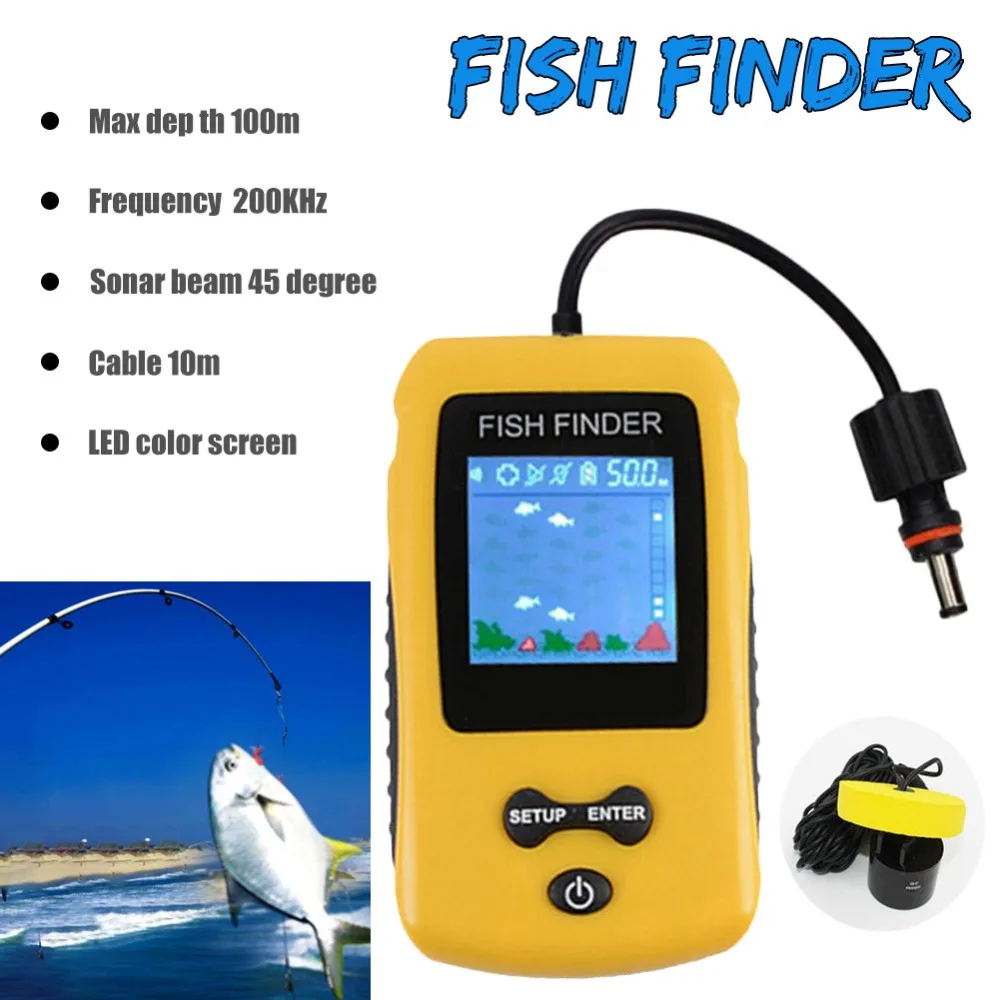

◆ Fishes and bottom contour readout: fish finder portable detects and displays water depth, approximate fish location, short & tall weeds, sand & rocks on bottom. Fish finder portable design gives you another option to hang it around neck.
◆ The kayak fish finder suits for variety fishes fishing environments: It can be used for off shore fishing, kayak fishing, ice fishing, lake fishing, sea fishing and so on. You can also use handheld fish finder on the moving kayak with speed below 5mph.
◆Depth readout: The fish finder portable detector range is in a 45°cone underwater. The detection of depth range is from 3ft(1m) to 328ft (100m) below fishing sonar transducer. The water depth can be shown either in feet or meter. The fishing sonar sensor is with 25 ft cable and removable transducer float.
◆ Small portable fish finder with powerful functions: 5 modes sensitivity options; battery save mode; backlight mode; fish and fish school alarm. Normally fishing depth finder supports 4-5 hours continuous working with brand new batteries. Open battery save mode can be working even longer.
◆ Perfect shopping experience: it will be one of your best fishing kayaking accessories. Please feel free to contact us via Amazon News (online 24 hours a day) for any questions before and after purchase.
Package Included :
1. Fish Finder Display
2. Sonar Sensor (Transducer) with 25ft cable
3. Removable Transducer Float with Rubber Stopper
4.Transducer Side-Scan Adapter
5. Stainless Bolt and Wing Nut
