Electric ULV sprayer Portable fogger machine Disinfection Machine for hospitals home ultra capacity spray machine fight drugs
Voltage: 220v/110v,if need 110V,please remark,default we send 220V

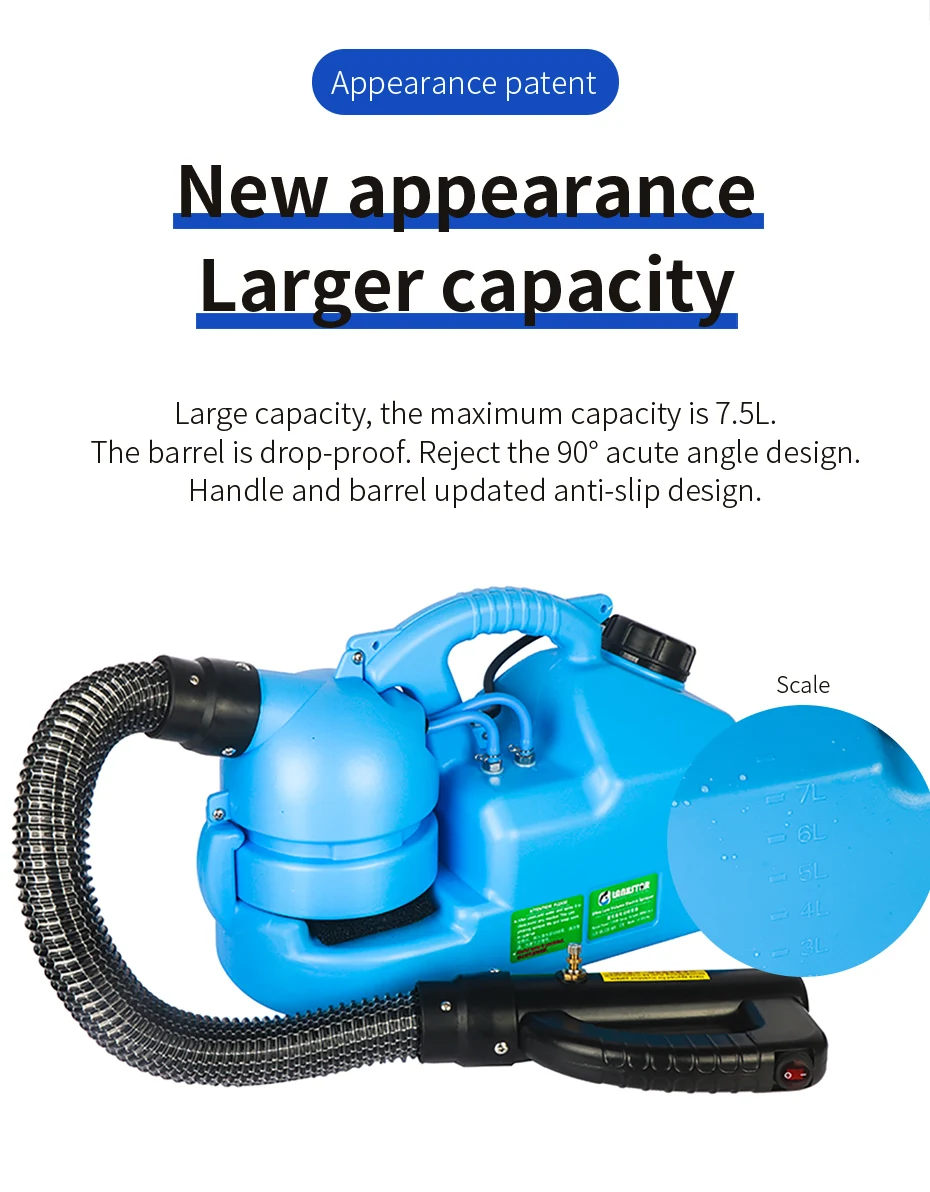

Tank capacity: 5L/ 7L
Spray range: 6-8 meters
Spray volume: 450ml / min (can be adjusted)
Fog: ≤50 microns (can be adjusted)
Color: Blue/White ,send at random .
1. Brief Introduction
The sprayer has wide applied fields and can be usedfor san i tation and epidemic prevention in hospital,restaurant, hotel and other public places. It alsocan be used in hen house, sheepfold. cowshed,hogpen and so on. it is an ideal electric sprayerwith reliable performance and convenient use.
2. Operation Instructions
(1). Close the throttle valve and press the switch to the 0(OFF)position. Unscrew the lid of chemical tank and add a solution of less than 7 liters according to the requiredratio. Tighten the lid of the chemical tank.
(2). Insert the power socket, unscrew the throttle valve to the appropriate position, lift the machine by hand or hang it on shoulder, hold the nozzle, press the switch to I (ON)the machine will spray: press the switch to 0(OFF) position, the machine will automatically shut down
(3). Turn the throttle valve to adjust the size of the fog and its amount of spray. Turn the throttle valve counter clockwise, the amount of fog becomes larger, and the fog particles become larger too. When the throttle valve is turned clockwise, the amount of fog become smaller, and the fog particles become smaller until theamount of fog is 0, and the size of the fog is 0.
(4). After use, the throttle valve must be turned clockwise to prevent the liquid from flowing out.
(5). When the lid of the chemical tank is tightly sealed the amount of mist will become larger, and when the lid of the chemical tank is not completely sealed, the amountof mist will become smaller. In order to achieve high performance, be sure to tighten the lid.
(6). Please read the precautions carefully.
(1). This sprayer is not allowed to spray or fill with flammable, explosive and corrosive substances such asalcohol, gasoline, benzene and high-concentrationdisinfectant (the disinfectant must be diluted before use)
(2). Please do not use the sprayer in a closed room. Afterthe spray is finished, close the doors and windows to increase the application effect and ensure the health ofthe person.
(3). It is forbidden to clean the sprayer by liquids suchas Banana oil or gasoline. When cleaning the appearance of the machine with water or other neutral detergent, care should be taken not to al low water or neutral detergent to flow into the motor casing.
(4). After each use, the unused liquid must be poured out and the liquid should not pollute the environment. And itis very important and necessary to add water to thechemical tank and start spraying for about 0.5-1 minutesto clean the machine pipeline to avoid the corrosion of the machine and incrcase the service life of the machine
(5). It is forbidden to be placed in a high temperature environment or under the sun for a long time to prevent the machine from being baked to deform, fade or crack.
(6). Do not unplug the plug by pulling the power cord. Please unplug with hand by holding rubber part of the plug
4. Preliminary failure check
If the sprayer has the following faults, you can do apreliminary check to eliminate the fault. If the preliminary inspection cannot solve the problem, you can contact the manufacturer for consultation
*First, the motor doesn ' t work
(1). Check if the machine power switch is in I(ON)position
(2). Check if the plug is securely inserted or if the socketis loose or damaged
(3). Check if the power is normal
*Second, amount of fog is reduced or weakened
(1). Check if the internal pipeline of the machine is folded,twisted, blocked or damaged.
(2). Check if the suction port is blocked
(3). Check if the throttle valve is damaged
(4). Check if the lid of the chemical tank is tightly sealed
